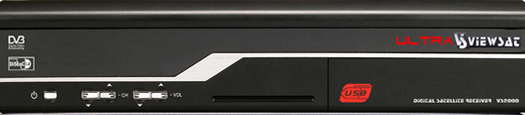

Viewsat Ultra

The Viewsat Ultra comes with a 200MHz processor and double the memory of the Xtreme (32 Mb SD RAM), and a USB 2.0 compatible port is also included for flashing the unit from a USB jump drive, or displaying digital pictures on your TV, as well as for playing mp3's. It has most of the same features as the Viewsat Xtreme including the Hardware Blind Scan but with more Speed, a front panel USB Port and a colorful and user friendly GUI (Graphical User Interface).

FEATURES
  • Fully MPEG-2 & DVB Compliant
  • Input Frequency 950-2150MHz
  • 200 MHz Connexant Processor
  • 32 Mb SD RAM
  • Supports 7 Day EPG (Electronic Program Guide)
  • Supports PIG (Picture in Graphic)
  • Supports SCPC & MCPC from C / Ku-band
  • 1 LNB Input Tuner with Loop Through IF Signal
  • Tuner Symbol Rate: 1-45MS/s
  • New Universal Remote Control
  • Card Reader (X Crypt Conditional Access System)
  • Fast Booting & Auto Scan
  • Hardware Driven Blindscan
  • 4000 Channel Programmable (TV & Radio)
  • Fast Channel Changing
  • User Friendly 256 Colors OSD & Easy GUI
  • Multi OSD Language supported
  • Radio Channel Screen Saver
  • Favorite Channel List Programmable
  • Master PIN Code Function & Parental Lock Function
  • 100 Step Volume Control
  • Automatic Detection of Forward Error Correction
  • USB Host Interface (Only for USB Memory Stick)
  • S/W Upgrade Supported by USB Port
  • Window Based S/W Download Program Supported by RS232 Serial Port
  • Set to Set Download (Main Program, Channel Data)
  • 4:3, 16:9 Letter Box & Teletext using OSD
  • 7 Segment-4 Digit Display
  • 5 Keys on Front Panel
  • (Power On/Off, Channel Up/Down, Volume Up/Down)
  • Various LNB Polarity Control
  • 22 KHz Switching Control
  • Optical Output for Digital Audio
  • S-VIDEO Output
  • 3 RCA outputs (2 Audio L/R and 1 Video)
  • 3 RCA Video Component Outputs (RGB
  • RF-Modulator Output
  • Rear Power Switch
SPECIFICATIONS
  • Power Supply Type: SMPS

  • Power Supply Input Voltage: AC 95V~240v 50Hz / 60Hz

  • Power Supply Fuse Rating: 250V/T2A

  • Tuner Input Frequency: 950 ~ 2150MHz

  • Tuner Input Signal Level: -65 ~ -25dBm

  • Tuner Input Impedance: 75ohm Unbalanced

  • Tuner Connector Type: FType Female

  • Tuner LNB Power Supply: 13V/18V, Max 500mA with Short Circuit Protection

  • Tuner 22KHz Tone: Frequency 22 4KHz, Amplitude 0.60.2Vpp

  • Tuner DiSEqC: 1.0 , 1.1, 1.2, USALS(1.3) Compatible

  • Tuner Channel Selection: PLL Frequency Synthesizer

  • Demodulator Type: QPSK Demodulation (DVB-S)

  • Demodulator Symbol Rate: 1 ~ 45 MS/s

  • Demodulator Inner FEC: Viterbi Convolutional Coding

  • Demodulator Rate 1/2, 2/3, 3/4, 5/6, 7/8

  • Demodulator Outer FEC: Reed Solomon Coding(204,188) T=8

  • Video Decoder System Decoding: MPEG-2 ISO/IEC 13818-2

  • Video Decoder Profile and Level: MPEG-2 MP@ML

  • Video Decoder Data Rate: 1 ~15 MB/s

  • Video Decoder Video Formats: 4:3(Normal) & 16:9(Widescreen)

  • Audio Decoder System Decoding: MPEG-1 ISO/IEC 11172-3 Layer I & II

  • Audio Decoder Audio Mode: Mono, Dual, Stereo, Joint Stereo

  • Audio Decoder Sampling Frequency: 32, 44.1, 48 KHz

  • Audio/Video Output Audio Output: 2 RCA Cinch (1 on LIte Model)

  • Audio/Video Output Video Output: 2 RCA Cinch (1 on Lite Model)

  • Audio/Video Output Digital Audio: 1 S/PDIF Optical (Platinum & Xtreme)

  • Audio/Video Output S-Video: 1 S-VIDEO

  • Audio/Video Output COMPONENT: 3 RCA Cinch (Xtreme)

  • RF Modulator Modulator Output: CH3~4

  • RF Modulator Video Type: NTSC

  • RF Modulator Output Connector: F Type Female

  • RF Modulator Ant. IN Connector: F Type Female

  • RF Modulator 8. Serial Data Interface

  • RF Modulator Signal: RS-232, Max. 115200 bps

  • RF Modulator Connector Type: 9 Pin D-Sub (male)
