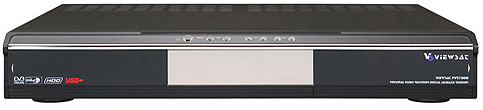

Viewsat PVR7000

The Viewsat PVR 7000 is a dual tuner PVR! Any standard IDE hard drive can be easily installed through the front access panel. This receiver comes with Card Reader built in, and uses a 160 MHz Internal processor. Also it has more SDRAM than most FTA receivers, with 16 Megs SDRAM. The Viewsat PVR 7000 comes with a dual tuner so you can watch one of your favorite shows while recording another at the same time!! The Viewsat PVR 7000 supports a maximum of 8000 channels and has a USB Port for fast updating without having to connect it to you computer.

FEATURES
  • Fully MPEG-2 & DVB Compliant
  • 160 MHz ST Processor
  • 2 Tuners
  • Watch and record
  • Dual recording
  • Time-shifting
  • Front panel easy hard drive access (hard drive not included)
  • Compatible with up to 2000 Gig hard drive!!!
  • Front panel card reader (X Crypt Conditional Access System)
  • MP3 (MPEG-1 Layer3) decoding
  • Powerful trick mode supported
  • Playback of the selected region repeatedly
  • Front Panel USB 2.0 supported for fast PC interface
  • Dual Decoding (PIP-Picture in Picture)
  • 160MHz ST processor
  • Set to Set Download (Main Program, Channel Data)
  • Input Frequency 950 ~2150MHz
  • 4:3, 16:9 Letter Box
  • 22KHz Switching Control
  • Various LNB Polarity Control
  • Supports Electronic Program Guide (EPG), Picture in Graphic (PIG)
  • Supports SCPC & MCPC from C / Ku-band
  • Fast Booting & Auto Scan
  • Quick Channel Changing
  • Max 8000 Channels (TV & Radio) Programmable
  • User Friendly 256 Colors OSD & Easy GUI
  • Multi OSD Language supported
  • Favorite Channel List editing
  • Master PIN Code Function & Parental Lock Function
  • Optical Output for Digital Audio
  • Window based S/W Download Program Supported by RS232 Serial Port
  • S-VIDEO Output
  • RF-Modulator Output
  • Power Switch
  • S/PDIF Output for Digital Audio
  • 9 RCA Output for Video (Twin), Audio L/R (Twin), Component
  • Zoom function
  • Hardware based Blind Scan
  • DiSEqC 1.0, 1.1, 1.2 and USALS (1.3) Compatible
  • Photo Album
SPECIFICATIONS
  • Power Supply Type: SMPS
  • Power Supply Input Voltage: AC 95V~240v 50Hz / 60Hz
  • Power Supply Fuse Rating: 250V/T2A
  • Tuner Input Frequency: 950 ~ 2150MHz
  • Tuner Input Signal Level: -65 ~ -25dBm
  • Tuner Input Impedance: 75ohm Unbalanced
  • Tuner Connector Type: FType Female
  • Tuner LNB Power Supply: 13V/18V, Max 500mA with Short Circuit Protection
  • Tuner 22KHz Tone: Frequency 22 4KHz, Amplitude 0.60.2Vpp
  • Tuner DiSEqC: 1.0 , 1.1, 1.2, USALS(1.3) Compatible
  • Tuner Channel Selection: PLL Frequency Synthesizer
  • Demodulator Type: QPSK Demodulation (DVB-S)
  • Demodulator Symbol Rate: 1 ~ 45 MS/s
  • Demodulator Inner FEC: Viterbi Convolutional Coding
  • Demodulator Rate 1/2, 2/3, 3/4, 5/6, 7/8
  • Demodulator Outer FEC: Reed Solomon Coding(204,188) T=8
  • Video Decoder System Decoding: MPEG-2 ISO/IEC 13818-2
  • Video Decoder Profile and Level: MPEG-2 MP@ML
  • Video Decoder Data Rate: 1 ~15 MB/s
  • Video Decoder Video Formats: 4:3(Normal) & 16:9(Widescreen)
  • Audio Decoder System Decoding: MPEG-1 ISO/IEC 11172-3 Layer I & II
  • Audio Decoder Audio Mode: Mono, Dual, Stereo, Joint Stereo
  • Audio Decoder Sampling Frequency: 32, 44.1, 48 KHz
  • RF Modulator Modulator Output: CH3~4
  • RF Modulator Video Type: NTSC
  • RF Modulator Output Connector: F Type Female
  • RF Modulator Ant. IN Connector: F Type Female
  • RF Modulator 8. Serial Data Interface
  • RF Modulator Signal: RS-232, Max. 115200 bps
  • RF Modulator Connector Type: 9 Pin D-Sub (male)
