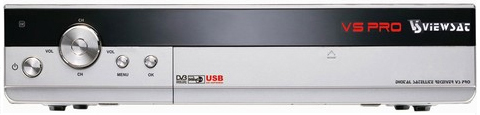

Viewsat Pro

The Viewsat Pro is one of the most powerful Free To Air Receiver to date! The Viewsat PRO uses the fastest processor ever in the FTA market, a whopping 260MHz processor With 32 Mb SDRAM, a beautiful new GUI, 2 USB ports (front and rear). Sporting a re-designed interface for true PVR functionality. In order to make this unit more affordable, Viewsat redesigned it to have a single tuner with the option of adding an external hard drive through either of two USB ports. Supports a Max of 6000 channels and 7 Day EPG.

FEATURES
  • Fully MPEG-2 & DVB compliant
  • Input Freq 950-2150MHz
  • Supports EPG and PIG
  • Supports SCPC & MCPC from C/Ku-Band
  • 1 LNB Input Tuner with Loop-through IF Signal
  • Fast Booting & Auto Scan
  • Quick Channel Changing
  • User Friendly 256 Colors OSD & Easy GUI
  • Max 6000 Channels
  • Multiple OSD Language Support
  • Radio Channel Background Display and Screen Saver
  • Master Pin Code Function & Parental Control Lock Function
  • Automatic Detection of Forward error Correction
  • Window based SW Download Program Supported by RS232 Serial Port
  • Receiver to Receiver Transfer Supported [Main Program, Channel Data]
  • 4:3, 16:9, Letter Box Screen Formats
  • 7 Segment 4 Digit Display
  • 7 key front panel operation [Power On/Off, Channel Up/Down Volume Up/Down, Menu]
  • Various LNB Polarity Control
  • 22 kHz Switching Control
  • 1 Composite Output (Video, Audio L/R)
  • 1 Component Output (Y.Pb,Pr)
  • USB Host Interface
  • SW Upgrade Supported via USB Port
  • 7 Day EPG (Electronic Program Guide) Support
  • S/PDIF Digital Audio Output
  • S-Video Output
  • RF-Modulator Output
  • Blind Scan
  • Zoom Function
  • Multi Picture Display
  • USALS Support
  • Universal Remote Control Unit
SPECIFICATIONS
  • Power Supply Type: SMPS

  • Power Supply Input Voltage: AC 95V~240v 50Hz / 60Hz

  • Power Supply Fuse Rating: 250V/T2A

  • Tuner Input Frequency: 950 ~ 2150MHz

  • Tuner Input Signal Level: -65 ~ -25dBm

  • Tuner Input Impedance: 75ohm Unbalanced

  • Tuner Connector Type: FType Female

  • Tuner LNB Power Supply: 13V/18V, Max 500mA with Short Circuit Protection

  • Tuner 22KHz Tone: Frequency 22 4KHz, Amplitude 0.60.2Vpp

  • Tuner DiSEqC: 1.0 , 1.1, 1.2, USALS(1.3) Compatible

  • Tuner Channel Selection: PLL Frequency Synthesizer

  • Demodulator Type: QPSK Demodulation (DVB-S)

  • Demodulator Symbol Rate: 1 ~ 45 MS/s

  • Demodulator Inner FEC: Viterbi Convolutional Coding

  • Demodulator Rate 1/2, 2/3, 3/4, 5/6, 7/8

  • Demodulator Outer FEC: Reed Solomon Coding(204,188) T=8

  • Video Decoder System Decoding: MPEG-2 ISO/IEC 13818-2

  • Video Decoder Profile and Level: MPEG-2 MP@ML

  • Video Decoder Data Rate: 1 ~15 MB/s

  • Video Decoder Video Formats: 4:3(Normal) & 16:9(Widescreen)

  • Audio Decoder System Decoding: MPEG-1 ISO/IEC 11172-3 Layer I & II

  • Audio Decoder Audio Mode: Mono, Dual, Stereo, Joint Stereo

  • Audio Decoder Sampling Frequency: 32, 44.1, 48 KHz

  • Audio/Video Output Audio Output: 2 RCA Cinch (1 on LIte Model)

  • Audio/Video Output Video Output: 2 RCA Cinch (1 on Lite Model)

  • Audio/Video Output Digital Audio: 1 S/PDIF Optical (Platinum & Xtreme)

  • Audio/Video Output S-Video: 1 S-VIDEO

  • Audio/Video Output COMPONENT: 3 RCA Cinch (Xtreme)

  • RF Modulator Modulator Output: CH3~4

  • RF Modulator Video Type: NTSC

  • RF Modulator Output Connector: F Type Female

  • RF Modulator Ant. IN Connector: F Type Female

  • RF Modulator 8. Serial Data Interface

  • RF Modulator Signal: RS-232, Max. 115200 bps

  • RF Modulator Connector Type: 9 Pin D-Sub (male)
