Professional Digital Satellite Finder SF3000S
The SF3000S Digital Satellite Finder Meter is an innovative professional satellite identification and alignment meter. This device is easy to operate. The signal strength and picture quality (BER) meter will speed up and improve your dish installation.
If you are a professional installer and want a finder that can identify a particular satellite, then this is the one!
If you are doing installations for High Definition Satellites then this is the tool for you!
The SF-3000S has a Spectrum Analyzer feature. This feature is ideal for locating High Definition Satellites of DirecTV and Dish Network. The Spectrum graph allows you to peak the signal fast and easy with great precision.
While most pointing devices only give you a general idea that there are indeed satellites in the sky and allow you to peak the signal, the SF3000S takes you one step further by positively identifying the satellite.
Finder Master Software is included in a CD. Comes now with USB 2.0 or RS-232 cables to connect to PC.
After selecting a country and city, the Finder Master Software will calculate the parameters to adjust the satellite dish automatically. The parameters include Azimuth, Elevation, and Polarization. They are displayed in graphic and table mode. This information can be downloaded by the USB cable provided, from your PC to your SF-3000S easily and effectively to locate the satellites from your destination.
You can view and download the user manual at www.easysatfinder.com.

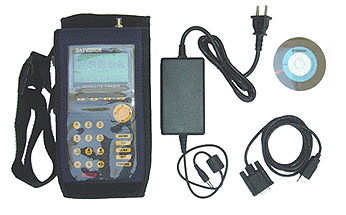

SF3000S with Accessories
Finder Master Software
QUICK FIND FEATURE
With the Quick Find feature you select the satellite from the menu, move your dish until the SF3000S makes a "beep" sound. There will be an <OK> icon on the top right corner of the screen. That mean the satellite has been found correctly. Indicates RF signal level and bit error rates, carrier-to-noise rate, at the same time for best dish alignment and cross polarity adjustment.
Why drag a TV and satellite receiver to the roof, when you can do the whole job with just a small and easy to carry tool like this!
At less than 2 lbs in weight, you can carry it anywhere you want.
Don't waste your valuable time or money on cheaper analog meters. Use this professional meter for all you installations. This digital satellite meter will maximize the number of installations any installer can perform in a day and is very easy to use.
What used to take half and hour to an hour now takes a few minutes to find and peak the signal! Time is valuable, why waste it!
Improve your service call efficiency and speed.
NEW SPECTRUM ANALYZER FEATURE
Finding satellites with the spectrum analyzer feature will speed up installations up to 50% faster.
The world's first spectrum analyzer feature with a whole new way to find satellites more convenient, better, and faster.
The world's first LNB power supply up to 750 mA. Full support of Dual or Triple LNB.
Eliminates cross-polarity interference on linear systems.
Get the absolute most signal out every dish you install.
Diagnose all types of
problems related to satellite signal distribution.
(LNBF, polarity switching, cable attenuation, 22Khz and DiSEqC switching, etc.)
All LNBs and LNBFs, in C, Ku and S band have an intermediate frequency output of 950 to 1450, 1750, 1950, or 2150 Mhz. The spectrum analyzer feature lets you visualize the entire output of and LNB or LNBF.
It allows you to identify a satellite by looking at its distinctive pattern. and also to determine such measurements as the carrier-to-noise ratio, the carrier level, and the LNB gain.
When it comes to digital television, the spectrum analyzer feature also allows you to visualize and eliminate the extremely important effects of cross polarization interference.
Total software upgrade
Software stored in Flash memory for later upgrade
Pre-programmed to most regionally used satellites
Signal strength and Bit Error Rate (Picture Quality) displayed simultaneously.
Easy reading LCD display.
Back lit display.
Up to 80 satellites may be pre-programmed.
Bar-graph for Signal Strength
Bar-graph for BER (Picture Quality).
Satellite settings store in non-volatile EPROM
Short circuit proof on LNB output.
Internal battery powers the LNB
Works with all stander, universal, linear (DVB) and circular (DSS) polarity LNBs
Weight approx less than 2 lbs.
Size approx: 9.84in W x 4.72in H x 2.36in D (250 x 120 x 60 mm)
Set satellite's related parameter which includes LNB frequency and working voltage (mode of polarization), satellite downstream frequency, symbol ate, 22K situation etc.
AZ, EL, and PO self-calculated for providing initial dish set-ups.
Align dish without IR/D, TV and power.
In alignment process, once a satellite is found by setting related parameter, we can adjust the dish's orientation and pitching angle according to inside audible tone
Measure RF signal level, bit error rate, carrier-to-noise rate and current.
Provides special software that can be used to check local position. AZ, EL, and PO for almost all big cities around the world in alignment process of a certain satellite.
Plans can be downloaded
from a certain website by RS232 port.
· Rainbow 1 61.5 West
· EchoStar 3 61.5 West
· Estrela 63.0 West
· Brasilsat 65.0 West
· Brasilsat 70.0 West
· Nahuel 1 71.8 West
· AMC 6 72.0 West
· DirecTV 1 72.5 West
· SBS 6 74.0 West
· AMC 5 74.0 West
· Nimiq 2 82.0 West
· AMC 9 83.0 West
· Brasilsat B3 84.0 West
· AMC 3 87.0 West
· Galaxy 28 89.0 West
· Nimiq 1 91.0 West
· Galaxy 11 91.0 West
· Galaxy 26 93.0 West
· Galaxy 3C 95.0 West
· Galaxy 25 97.0 West
· Galaxy 16 99.0 West
· DirecTV 1R 101.0 West
· AMC 4 101.0 West
· AMC 1 103.0 West
· AMC 15 105.0 West
· Anik F1R 107.3 West
· DirecTV 5 109.0 West
· EchoStar 8 110.0 West
· EchoStar 10 110.0 West
· Anik F2 111.1 West
· Solidarida 113.0 West
· SatMex 6 113.0 West
· Solidarida 114.9 West
· SatMex 5 116.8 West
· AMC 16 118.8 West
· EchoStar 7 119.0 West
· DirecTV 7S 119.0 West
· EchoStar 9 121.0 West
· Galaxy 10R 123.0 West
· Galaxy 14 125.0 West
· Galaxy 13 H 127.0 West
· Galaxy 27 129.0 West
· EchoStar 5 129.0 West
· AMC 11 131.0 West
· Galaxy 15 113.0 West
· AMC 10 135.0 West
· AMC 7 137.0 West
· AMC 8 139.0 West
· EchoStar 2 148.0 West
· EchoStar 1 148.0 West
Special power supply s adapter: 1 piece
RF input connector GMHF-L9.5-JK: 1 piece
Instrument bag: 1 piece
Operator's manual: 1 piece
CD-ROM: 1 piece
Data cable: 1 piece
