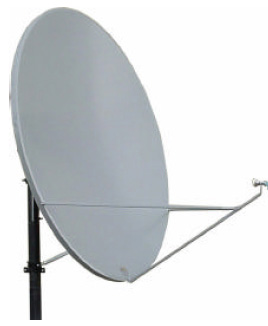

2.4 Meter Solid Metal Dish

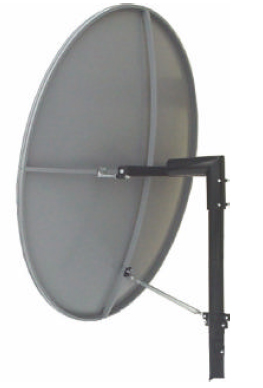

Hydroforming aluminum to an accurate parabolic antenna with no flat spots, ripples, humps or flaws which cause signal distortion is the secret. Hydro-formed stress tempered aluminum provides accuracy unparalleled in the microwave industry. True Focus Offset Antenna’s steel  reinforced back structure provides superior strength, minimizing surface distortion due to wind loading. Hydroforming creates a perfectly smooth parabolic surface in the dish face giving TRUE FOCUS the best C-band and Ku-band performance available.

  • Accurate RMS (.018”)

  • No separation or weather cracking

  • Simple installation and design (INSTALLATION in 30 minutes or less)

  • Hydroformed aluminum construction

  • Extremely stable pointing accuracy

  • Heavy duty AZ-EL mount with fine tuning


Electrical
Ku-band Frequency GHz 10.95-12.75 GHz
Gain dBi (Typical) 47.6
3dB Beamwidth Ku-band .71
Noise Temperature ºKelvin (@30º Elevation) 28 k
Cross Polarization - On Axis (Minimum dBi) 30 dB on axis
VSWR (Maximum) 1.3:1
First Sidelobe 20 dB



Mechanical
Reflector F/D Ratio .610
Surface Accuracy (Typical RMS) .018”
Antenna Style Offset
Number of Sections 1-Piece
Reflector Material: .050 Aluminum
Hydro-formed Reinforced edge & back frame
Feed support Type Tripod
Angle of Offset 22.3º



Environmental
Wind Loading (Miles Per Hour): Operational ( Minimum): 60 mph
Survival: 125 mph
Temperature (ºFahrenheit): Operational ( Minimum): -20º - 125 ºF
Survival: -40º - 165 ºF



Mount Options
Commercial Azimuth/Elevation Mount Azimuth Adj- 360º
Elevation Adj- 10º - 90º
Pipe Size (Outside Dimensions) 4.50”
Non-Penetrating Roof Mount Yes



Product Specifications
Mount Weights 175 Lbs
Box Dimensions 53 x 28 x 22.5 inches
Antenna Weight & Hardware 375 Lbs
Create Dimensions 103 x 19.5 x 98 inches
Antenna & Mount Finish / Color Powder Coat / White or Gray
