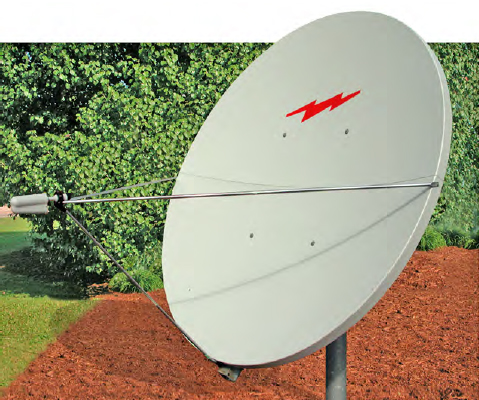

2.4 Meter Fiberglass Dish

The Andrew Corporation 2.4 m Type 243 Offset Receive-Only Antenna is a rugged commercial grade product suitable for the most demanding applications. The two-piece reflector is thermoset-molded for strength and surface accuracy. Molded into the rear of each reflector half is a network of support ribs which not only strengthens the antenna, but also helps to sustain the critical parabolic shape. The Az/El mount is constructed from heavygauge steel to provide a rigid support to the reflector. Heavy-duty lockdown bolts secure the mount to any 6.63” (168 mm) O.D. mast and prevent slippage in high winds. Hot-dip galvanizing is standard for maximum environmental protection.

  • Two-piece precision offset thermosetmolded reflector

  • Fine azimuth and elevation adjustments

  • Galvanized .75” (19 mm) O.D. feed support legs

  • Factory pre-assembled mount

  • Galvanized and stainless hardware for maximum corrosion resistance

  • Available with a wide variety of C-Band or Ku-Band feeds


RF Performance


C-Band

Ku-Band

Effective Aperture 2.4 m (96 in) 2.4 m (96 in)
Operating Frequency 3.7 - 4.2 GHz 10.95 - 12.75 GHz
Polarization Linear (Circular optional) Linear (Circular optional)
Gain @ 3.95/11.95 GHz 38.0 dBi 47.6 dBI
3dB Beamwidth 2.1° 0.7°
Antenna Noise Temperature @ 30° Elevation 36° K 31° K
VSWR 1.4:1 1.3:1
Cross-Polarization Discrimination >30 dB On Axis (Linear) >30 dB On Axis (Linear)
Feed Interface CPR-229 WR75 Cover Flange (UBR120)



Mechanical Performance
Reflector Material Glass Fiber Reinforced Polyester
Antenna Optics Two-Piece Offset Feed Prime Focus
Mount Type Elevation over Azimuth
Elevation Adjustment Range 10°-90° Continuous Fine Adjustment
Azimuth Adjustment Range 360° Continuous; ± 12° Fine Adjustment
Mast Pipe Interface 6.63 in (168mm) Diameter
Wind Loading Operational 50 mi/h (80 km/h)
Survival 125 mi/h (200 km/h)
Temperature -50°C to 80°C
Humidity 0 to 100% (Condensing)
Atmosphere Salt, Pollutants, and Contaminants as Encountered in Coastal and Industrial Areas
Solar Radiation 360 BTU/h/ft²
Shock and Vibration As Encountered During Shipping and Handling
