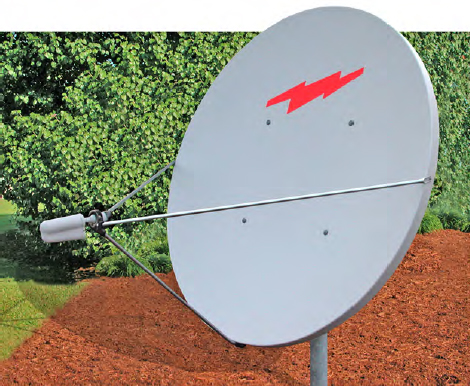

1.8 Meter Satellite Dish Type 180



The Andrew Corporation 1.8 m Type 180 Offset Antenna is a rugged commercial grade product suitable for the most demanding applications. The reflector is thermoset-molded for strength and surface accuracy. Molded into the rear of the reflector is a network of support ribs which not only strengthens the antenna, but also helps to sustain its critical parabolic shape. The Az/El mount is constructed from heavy-gauge steel to provide a rigid support to the reflector. Four heavy-duty lockdown bolts secure the mount to any 4.50” (114 mm) O.D. mast and prevent slippage in high winds. A specially formulated powder paint process offers excellent protection from weather-related corrosion. Hot-dip galvanizing is optional for extreme environmental conditions.

  • One-piece thermoset-molded offset reflector

  • Single bolt fine elevation adjustment

  • Galvanized .75” (19 mm) O.D. feed support legs

  • Factory pre-assembled mount

  • Plated hardware for maximum corrosion resistance.

  • Available with a wide variety of C-Band or Ku-Band feeds

The 1.8 meter dish and its mount come in two separate boxes. The 1.8 dish weighs 100 lbs. and the dimensions of its box are 73 in. x 80 in. x 8 in. The mount weighs 50 lbs. and the dimensions of its box are 26 in. x 26 in. x 12 in.


RF Performance


C-Band

Ku-Band

Effective Aperture 1.8 m (71 in) 1.8 m (71 in)
Operating Frequency 3.7 - 4.2 GHz 10.95 - 12.75 GHz
Polarization Linear (Circular optional) Linear (Circular optional)
Gain @ 3.95/11.95 GHz 35.3 dBi 45.5 dBI
3dB Beamwidth 3.0° 1.0°
Antenna Noise Temperature @ 30° Elevation 30° K 23° K
VSWR 1.4:1 1.3:1
Cross-Polarization Discrimination >30 dB On Axis (Linear) >30 dB On Axis (Linear)
Feed Interface CPR-229 WR75 Cover Flange (UBR120)



Mechanical Performance
Reflector Material Glass Fiber Reinforced Polyester
Antenna Optics One-Piece Offset Feed Prime Focus
Mount Type Elevation over Azimuth
Elevation Adjustment Range 10°-70° Continuous Fine Adjustment
Azimuth Adjustment Range 360° Continuous
Mast Pipe Interface 4.50 in (114mm) Diameter
Wind Loading Operational 50 mi/h (80 km/h)
Survival 125 mi/h (200 km/h)
Temperature -50°C to 80°C
Humidity 0 to 100% (Condensing)
Atmosphere Salt, Pollutants, and Contaminants as Encountered in Coastal and Industrial Areas
Solar Radiation 360 BTU/h/ft²
Shock and Vibration As Encountered During Shipping and Handling
