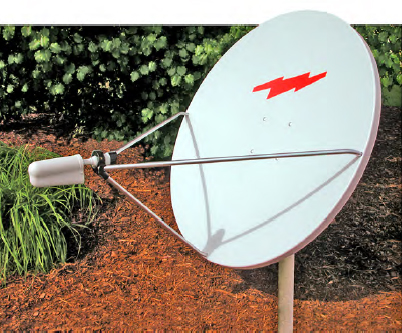

1.2 Meter Satellite Dish Type 120



The 1.2 Meter Type 120 Offset Antenna is a rugged commercial grade product suitable for the most demanding applications. The reflector is thermoset-molded for strength and surface accuracy. Molded into the rear of the reflector is a network of support ribs which not only strengthens the antenna, but also helps to sustain its critical parabolic shape.

The Az/El mount is constructed from heavygauge steel to provide a rigid support to the reflector. The Az/El mount secures the antenna to any 2.88” - 3.00” (73-76 mm) O.D. mast and prevents slippage in high TYPE 120 winds. A specially formulated powder paint process offers excellent protection from weather-related corrosion.

  • One-piece thermoset-molded offset reflector

  • Single bolt fine elevation adjustment

  • Galvanized .75” (19 mm) O.D. feed support legs

  • Factory pre-assembled mount

  • Plated hardware for maximum corrosion resistance

  • Available with a wide variety of C-Band or Ku-Band feeds


RF Performance


C-Band

Ku-Band

Effective Aperture 1.2 m (48 in) 1.2 m (48 in)
Operating Frequency 3.4 - 4.8 GHz 10.95 - 12.75 GHz
Polarization Linear (Circular optional) Linear (Circular optional)
Gain @ 3.95/11.95 GHz 32.0 dBi 42.0 dBI
3dB Beamwidth 4.4° 1.6°
Antenna Noise Temperature @ 30° Elevation 32° K 24° K
VSWR 1.4:1 1.3:1
Cross-Polarization Discrimination >30 dB On Axis (Linear) >30 dB On Axis (Linear)
Feed Interface CPR-229 WR75 Cover Flange (UBR120)



Mechanical Performance
Reflector Material Glass Fiber Reinforced Polyester
Antenna Optics One-Piece Offset Feed Prime Focus
Mount Type Elevation over Azimuth
Elevation Adjustment Range 10°-70° Continuous Fine Adjustment
Azimuth Adjustment Range 360° Continuous
Mast Pipe Interface 2.88 - 3.00 in (73 - 76mm) Diameter
Wind Loading Operational 50 mi/h (80 km/h)
Survival 125 mi/h (200 km/h)
Temperature -50°C to 80°C
Humidity 0 to 100% (Condensing)
Atmosphere Salt, Pollutants, and Contaminants as Encountered in Coastal and Industrial Areas
Solar Radiation 360 BTU/h/ft²
Shock and Vibration As Encountered During Shipping and Handling
